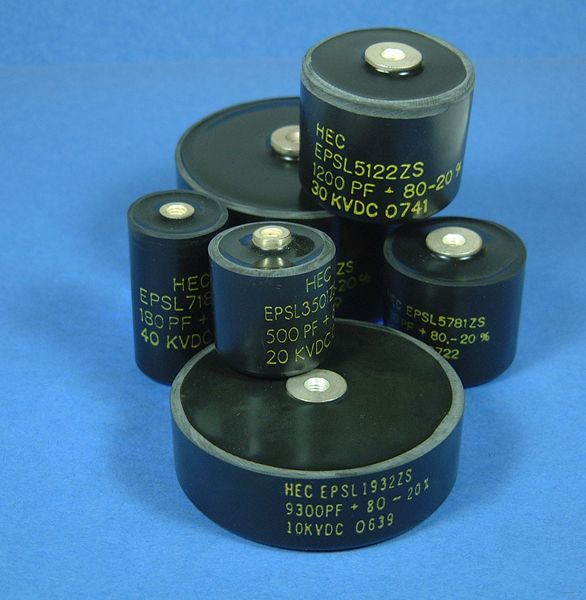

Designed For High Voltage DC-Blocking
High Capacitance Values in Small Size
Rugged & Epoxy Encapsulated
High-Torque Terminals Available
Class II X5U Dielectric

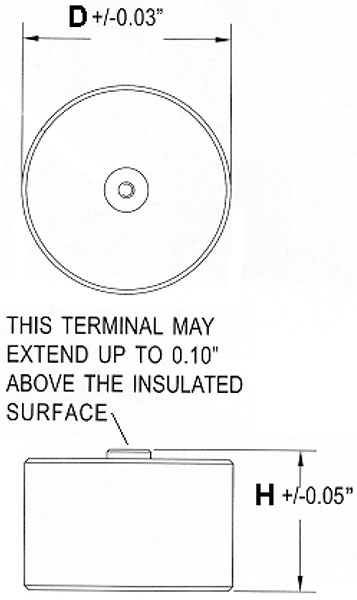

Part Number | CAP | VMAX(DC) | Physical Depth (D) | Physical Height (H) | Terminal H Available |
EPSLU112ZS | 1100 pF | 6 kV | 0.83 in | 0.69 in | No |
EPSLU202ZS | 2000 pF | 6 kV | 1.00 in | 0.69 in | No |
EPSLU342ZS | 3400 pF | 6 kV | 1.25 in | 0.69 in | No |
EPSLU542ZS | 5400 pF | 6 kV | 1.50 in | 0.69 in | No |
EPSLU802ZH | 8000 pF | 6 kV | 1.75 in | 0.69 in | Yes |
EPSLU113ZS | 11000 pF | 6 kV | 2.08 in | 0.69 in | Yes |
EPSLU143ZH | 14000 pF | 6 kV | 2.25 in | 0.69 in | Yes |
EPSLU163ZS | 16000 pF | 6 kV | 2.37 in | 0.69 in | Yes |
EPSL1681ZS | 800 pF | 10 kV | 0.83 in | 0.81 in | No |
EPSL1122ZS | 1200 pF | 10 kV | 1.00 in | 0.81 in | No |
EPSL1202ZS | 2000 pF | 10 kV | 1.25 in | 0.81 in | No |
EPSL1322ZS | 3200 pF | 10 kV | 1.50 in | 0.81 in | No |
EPSL1472ZS | 4700 pF | 10 kV | 1.75 in | 0.81 in | Yes |
EPSL1652ZS | 6500 pF | 10 kV | 2.08 in | 0.81 in | Yes |
EPSL1832ZS | 8300 pF | 10 kV | 2.25 in | 0.81 in | Yes |
EPSL1932ZS | 9300 pF | 10 kV | 2.37 in | 0.81 in | Yes |
EPSL2471ZS | 470 pF | 15 kV | 0.83 in | 0.95 in | No |
EPSL2801ZS | 800 pF | 15 kV | 1.00 in | 0.95 in | No |
ESPL2132ZS | 1300 pF | 15 kV | 1.25 in | 0.95 in | No |
ESPL2222ZS | 2200 pF | 15 kV | 1.50 in | 0.95 in | No |
EPSL2322ZS | 3200 pF | 15 kV | 1.75 in | 0.95 in | Yes |
EPSL2462ZS | 4600 pF | 15 kV | 2.08 in | 0.95 in | Yes |
EPSL2582ZS | 5800 pF | 15 kV | 2.25 in | 0.95 in | Yes |
EPSL2652ZS | 6500 pF | 15 kV | 2.37 in | 0.95 in | Yes |
ESPL3351ZS | 350 pF | 20 kV | 0.83 in | 1.13 in | No |
