DC Filter capacitors
1 to 20 µF capacitance
Voltage 10,000 to 100,000 VDC

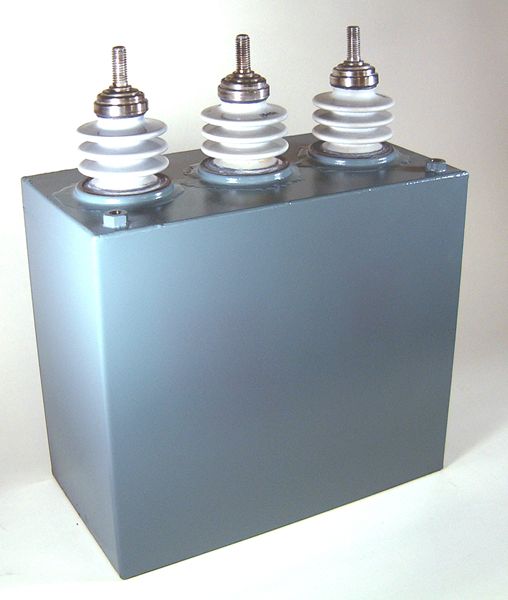

Welded Rectangular Cans

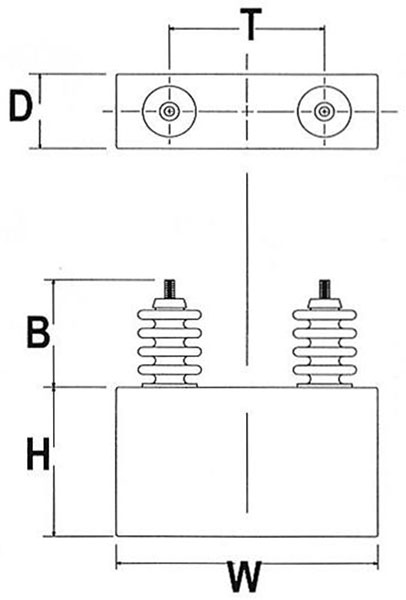

Part Number | CAP | Voltage (DC) | D | W | H | B | T |
LC322 | 5 µF | 10000 V | 4.0 in | 8.0 in | 10 in | 3 in | 5.00 in |
LC330 | 10 µF | 10000 V | 4.13 in | 13.5 in | 10 in | 3 in | 5.00 in |
LC323 | 1 µF | 20000 V | 4.0 in | 8.0 in | 8 in | 3 in | 5.00 in |
LC324 | 2 µF | 20000 V | 4.13 in | 13.5 in | 9 in | 3 in | 9.00 in |
LC325 | 5 µF | 20000 V | 5.13 in | 13.5 in | 15 in | 3 in | 9.00 in |
LC326 | 10 µF | 20000 V | 6.25 in | 13.5 in | 22 in | 3 in | 9.00 in |
LC327 | 1 µF | 40000 V | 5.13 in | 13.5 in | 11 in | 5 in | 9.00 in |
LC328 | 2 µF | 40000 V | 5.13 in | 13.5 in | 18 in | 5 in | 9.00 in |
LC329 | 4 µF | 40000 V | 6.25 in | 13.5 in | 24 in | 5 in | 9.00 in |
LC CUSTOM | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
